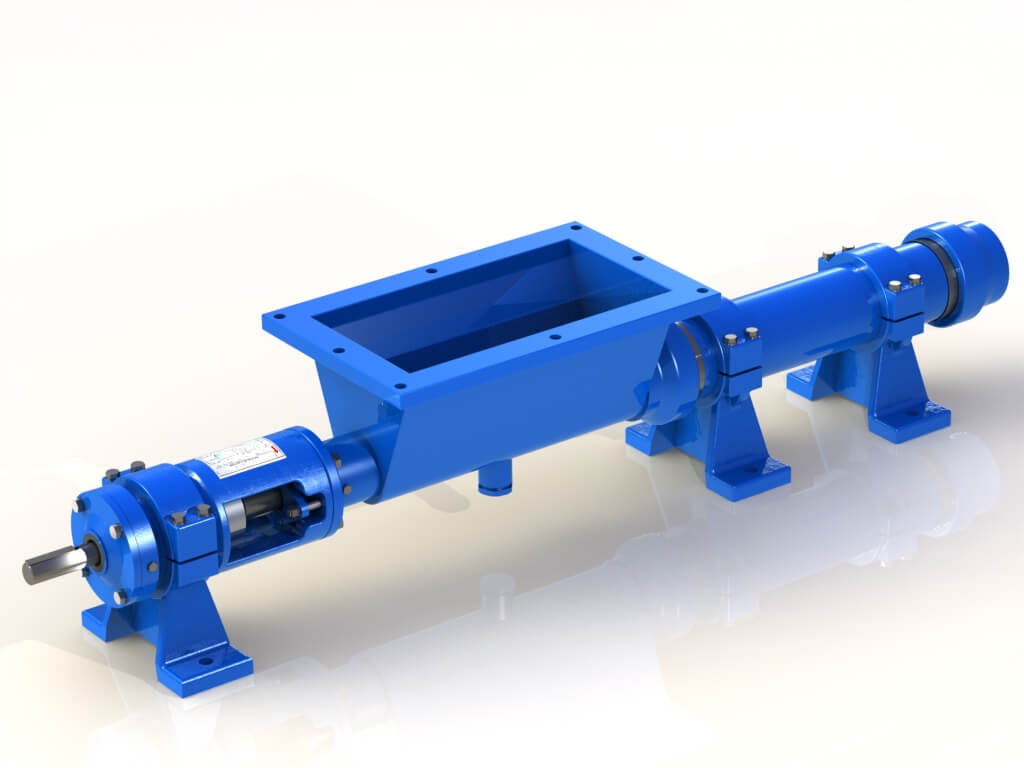

General Description
The J Line is designed with an open throat hopper and an auger feed screw. This configuration is indispensable for pumping non-flowable products and those with extreme viscosities that cannot be gravity-fed.
The auger forces the product into the stator, ensuring complete filling of the cavities and preventing cavitation when handling thick fluids like pastes or dewatered sludge.
Continuous Flow
Easy Disassembly
Forced Feeding
High Viscosity
Technical Specifications
| Max Flow Rate | Up to 150 m³/h |
|---|---|
| Max Pressure | Up to 24 bar |
| Working Temperature | Up to 150°C |
| Max Viscosity | Up to 1,000,000 cP |
| Max Solid Size | Depending on model and pitch |
| Housing Materials | Cast Iron, 304/316 Stainless Steel |
| Rotor Materials | SAE 4140 Steel, 304/316L Stainless Steel (Optional coatings) |
| Available Stators | NBR, EPDM, Viton, Sanitary |
- Food Industry: Doughs, sweets, creams, fruit pulps.
- Water Treatment: Dewatered sludge (cake).
- Chemical Industry: Putties, adhesives, high-density paints.
- Paper Industry: High-consistency paper pulp.

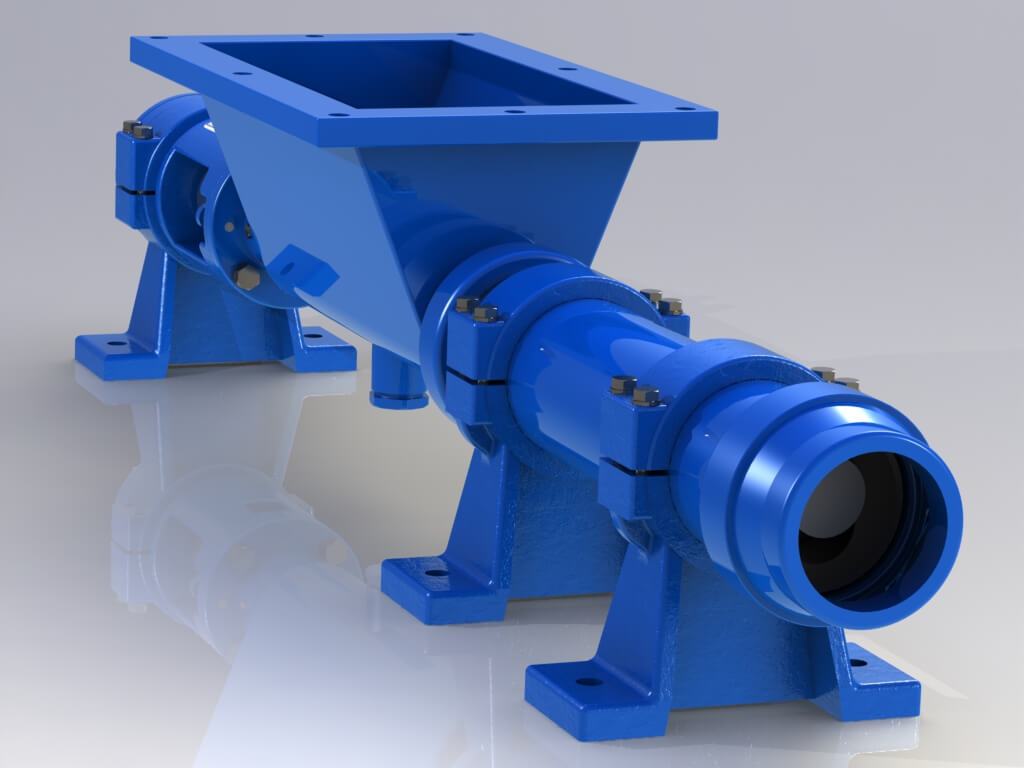

The hopper dimensions can be customized according to the installation requirements or the existing receiving hopper. Please refer to the catalog for standard measurements.
Why choose the J Line?
Forced Feeding: The auger ensures the product enters the pumping system.
Versatility: Handles everything from sludge to food products.
Customizable: Custom-built hoppers based on your needs.
Need help selecting a model?
Contact Engineering
